3D printing Nylon and other materials

1.

   Nylon PA12 TOP

   PA12

   - Print mode: Layer thickness 80 micron
   - Tensile strength 48 MPa
   - Elongation at break 17 %
   - Manual optimisation to maximize the mechanical and aesthetic quality of the component.
   - Sandblasting and cleaning with automatic cycle and subsequent Manual remaking

   Natural color: Grey
   UV Resistant colors: Black
   Painting: All 213 RAL shades

   Sturdy thermoplastic material for components with high density.
   Ideal for mass production.

   Properties:
   - Excellent mechanical properties
   - High precision
   - Excellent chemical resistance to oil, grease, aliphatic hydrocarbons and alkanes
   - Good thermal stability
   - Biocompatibility certifications: comply with directive USP class I-VI and US FDA

   - Certifications : RoHS,11 REACH, PAHs, UL 94, UL 746A, Statement of Composition for Toy Applications.

   Great for complex components, casings, cases and airlocked applications.

   Material Datasheet Certifications
2.

   Nylon PA12 TOP MECHANICAL

   - Print mode: Layer thickness 80 micron
   - Tensile strength 53 MPa
   - Elongation at break 19 %
   - Manual optimisation to maximize the mechanical and aesthetic quality of the component.
   - Sandblasting and cleaning with automatic cycle and subsequent Manual remaking

   Natural color: Grey
   UV Resistant colors: Black
   Painting: All 213 RAL shades

   Sturdy thermoplastic material for components with high density.
   Ideal for mass production.

   Properties:
   - Excellent mechanical properties
   - High precision
   - Excellent chemical resistance to oil, grease, aliphatic hydrocarbons and alkanes
   - Good thermal stability
   - Biocompatibility certifications: comply with directive USP class I-VI and US FDA

   - Certifications : RoHS,11 REACH, PAHs, UL 94, UL 746A, Statement of Composition for Toy Applications.

   Great for complex components, casings, cases and airlocked applications.

   Material Datasheet Certifications
3.

   Nylon PA12 STANDARD

   PA12

   - Print mode: Layer thickness 80 micron
   - Tensile strength 48 MPa
   - Elongation at break 17 %
   - Sandblasting and cleaning with automatic cycle

   Natural color: Grey
   UV Resistant colors: Black
   Painting: All 213 RAL shades

   Sturdy thermoplastic material for components with high density.
   Ideal for mass production.

   Properties:
   - Excellent mechanical properties
   - High precision
   - Excellent chemical resistance to oil, grease, aliphatic hydrocarbons and alkanes
   - Good thermal stability
   - Biocompatibility certifications: comply with directive USP class I-VI and US FDA

   - Certifications : RoHS,11 REACH, PAHs, UL 94, UL 746A

   Great for complex components, casings, cases and airlocked applications.

   Material Datasheet Certifications
4.

   Nylon PA12 FAST

   PA12

   - Print mode: Layer thickness 110 micron
   - Tensile strength 44 MPa and only Z axis 40 Mpa
   - Elongation at break 12 %
   - Sandblasting and cleaning with automatic cycle

   Natural color: Grey
   UV Resistant colors: Black
   Painting: All 213 RAL shades

   Thermoplastic material for still components.
   Ideal for production where mechanical and visual properties are not so important.

   Properties:
   - Good mechanical properties
   - Good precision
   - Excellent chemical resistance to oil, grease, aliphatic hydrocarbons and alkanes
   - Good thermal stability
   - Biocompatibility certifications: comply with directive USP class I-VI and US FDA

   - Certifications : RoHS,11 REACH, PAHs, UL 94, UL 746A

   Great for casings, cases and fixed parts.

   Certifications
5.

   Nylon PA12 UVR-R Resistant Roughtless Top

   - Tensile strength 45-43 MPa
   - Elongation at break 12-5%
   - Manual optimisation to maximize the mechanical and aesthetic quality of the component.
   - Sandblasting and cleaning with automatic cycle
   - Recommended for Natural Matt finishes and spray painting

   Natural color: Grey
   Painting: All 213 RAL shades

   Properties:
   - Good mechanical properties
   - Good precision
   - Excellent chemical resistance to oil, grease, aliphatic hydrocarbons and alkanes
   - Good thermal stability

   Reduced surface roughness and increased weather resistance.
   Ideal for complex parts, housings and watertight applications that are directly exposed to sunlight and outdoors.



   MATERIAL DATASHEET
6.

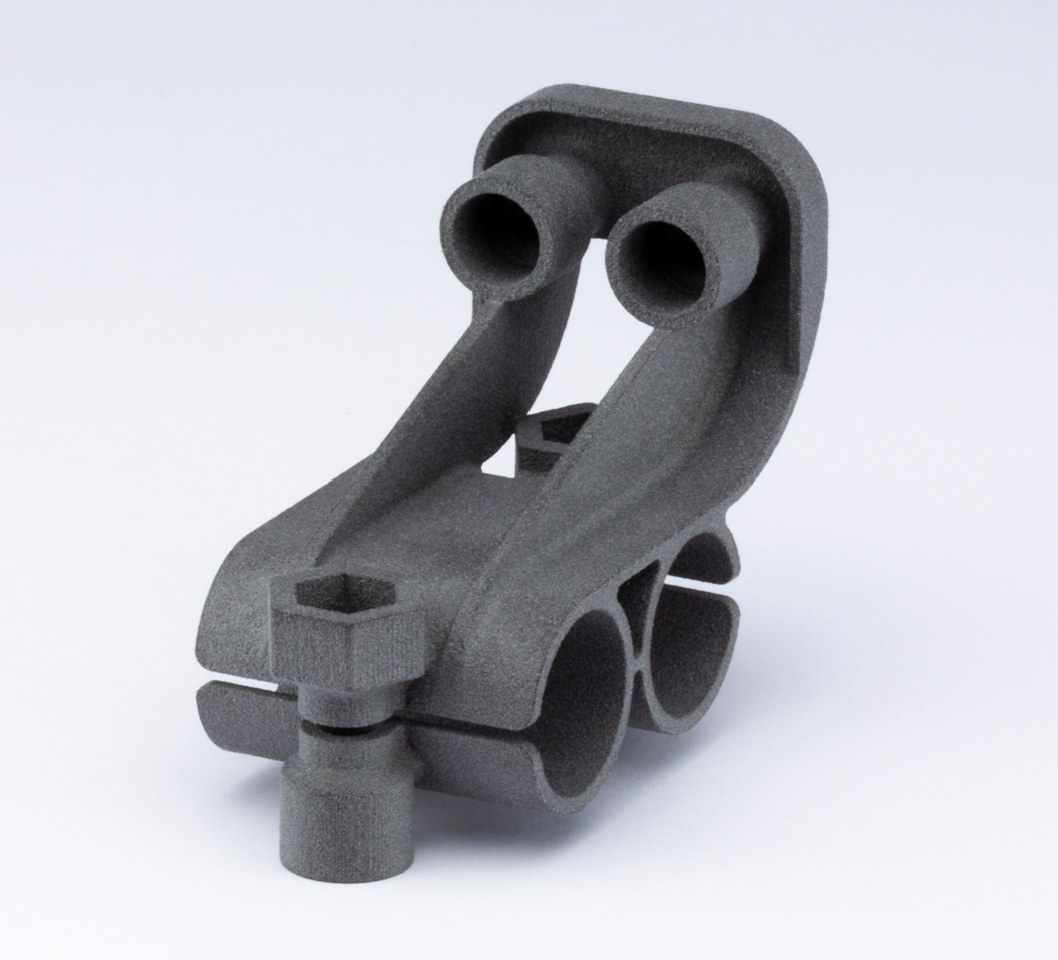

   Nylon PA12 FR Flame Retardant

   New material: PA12FR

   - Print mode: Layer thickness 90 micron
   - Tensile strength 46 MPa
   - Elongation at break 4,7 %
   - Manual optimisation to maximize the mechanical and aesthetic quality of the component.
   - Sandblasting and cleaning with automatic cycle and subsequent Manual remaking

   Natural color: Grey

   Halogen-free material, UL94 certified.
   Achieves UL94 V0 flammability safety standard at 2,5mm thickness
   Ideal for mass production.

   Properties:
   - Excellent mechanical properties
   - High precision
   - Good thermal stability
   - HB certified with a thickness of 1,0mm
   - V2 certified with a thickness of 1,8mm
   - V0 certified with a thickness of 2,5mm

   Great for complex components, casings, cases and airlocked applications.

   MATERIAL DATASHEET Certifications
7.

   Glass Beads TOP (MJF)

   PA12GB

   - Printing Mode: Layer thickness 80 micron
   - Breaking load: 29 MPa
   - Elongation at break: 10 %
   - Manual optimization to maximize the mechanical and aesthetic quality of the component
   - Sandblasting and cleaning with automatic cycle and subsequent Manual remaking

   Natural color: Grey
   UV RESISTANT colours: Black
   Varnishing: All 213 RAL colours

   This material is characterized by excellent stiffness in combination with good elongation at break.

   Properties:
    - high stiffness
    - high mechanical resistance to wear
    - high dimensional accuracy and high detail resolution
    - excellent surface quality
    - good thermal stability

   Ideal for casings, drawing die parts or any other application that requires special rigidity, low abrasive wear and high thermal stability.

   Material Datasheet Certifications
8.

   TPU Shore A 88-90 (MJF)

   TPU
   This material is characterised by excellent elasticity which makes it similar to rubber.

   - Printing Mode:  Layer thickness 80 micron
   - Breaking load:  9 MPa
   - Elongation at break:  280-150 %
   - Manual optimisation to maximise the mechanical and aesthetic quality of the component.
   - Sandblasting and cleaning with automatic cycle and subsequent Manual remaking

   Natural colour: Grey
   UV RESISTANT colour: Black

   Characteristics:
   - high elasticity and resistance
   - good chemical resistance
   - excellent long-term stability
   - high resolution of details
   Ideal for high quality functional and flexible plastic components.

   Material Datasheet Certifications
9.

   Polyamide PA11 TOP (MJF)

   PA11

   - Printing Mode: Layer thickness 80 micron
   - Breaking load:  52 MPa
   - Elongation at break: 36 %
   - Manual optimisation to maximise the mechanical and aesthetic quality of the component.
   - Sandblasting and cleaning with automatic cycle and subsequent Manual remaking

   Natural colour: Grey
   UV RESISTANT colour: Black
   Varnishing: All 213 RAL colours

   This material has well balanced properties.

   Characteristics:
   - high strength and inflexibility
   - good chemical resistance
   - High resolution of details
   - Bio-compatible
   - Certifications: USP Class I-VI and US FDA guidance for Intact Skin Surface Devices

   Ideal for high quality functional plastic parts, the excellent bending strength allows, for example, connections of moving parts with opening and closing cycles. Impact resistance and ductility for prostheses, insoles, sporting goods, fastening clips, hinges and more.


   Material Datasheet Certifications
10.

    NYLON PA12-CF Carbon Fiber (FDM)

    PA12-CF

    - Print mode: FDM
    - Tensile strength 69,3 MPa
    - Elongation at break 2,9 %
    Natural color: Black

    Properties:
    - Remarkable mechanical and thermal characteristics.
    - Suitable for applications requiring robustness, longevity and tolerance to temperature fluctuations.
    - Solid and durable structure perfect for applications requiring reliability and longevity.
    - Its robust construction ensures that components retain their shape and size even under stress.
    - High strength enabling it to withstand external forces and impacts without deforming or breaking.
    - Lightness achieved through a 30% fill rate during 3D printing.
    - This lightness does not compromise its strength, making it ideal for applications where weight reduction is crucial without affecting the integrity of the component.


    Nylon PA12 CF (carbon fibre) is a high-performance material used in industry as a metal substitute; it is characterised by its extreme lightness and strength.
    Printed with 3D FDM technology, it offers great flexibility in design.

    MATERIAL DATASHEET
